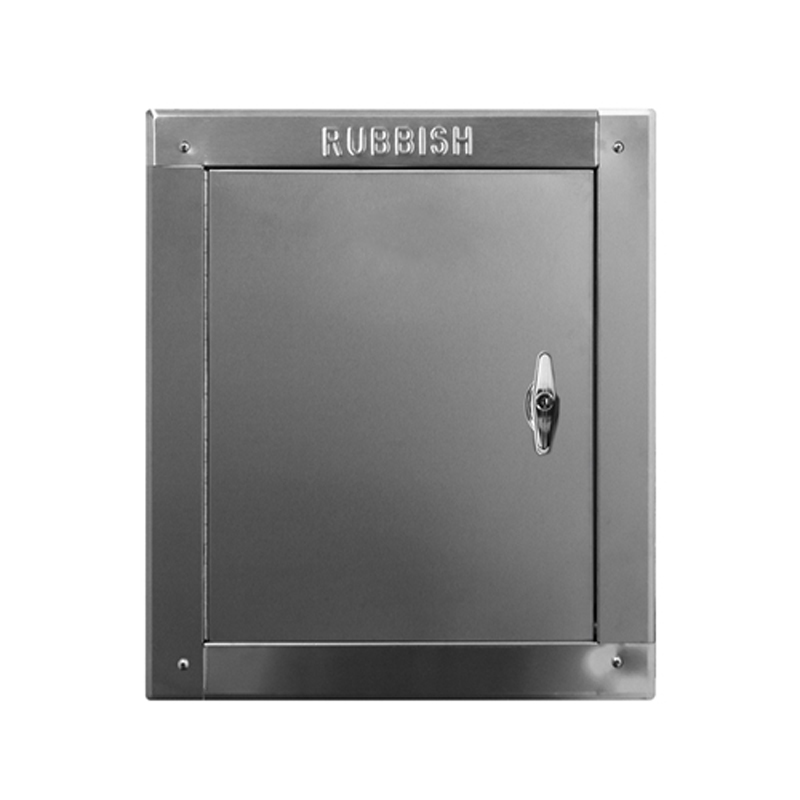

15"x18" Left Side Hinged Intake Door Assembly, "R" Series

• Complete Chute Intake Door Assembly.
• Nominal Size: 15" Width x 18" Height.
• Left Side Hinged.
• Hand Operated.
• Self Closing.
• Positive Latching.
• "T" Style Handle.
• 1-1/2 hour UL labeled.
• "R" Replacement Style.

Includes:

Operator: Replaceable "T" style handle with key and latch assembly. Select option to change to a pull handle w/ thumb latch trigger at no additional charge.
Door closer: Closer is exposed to the door opening for ease of replacement (wears quicker than the "W" Series because of exposure to waste.)
Door panel/frame: A 1/2” shaft and flanged bronze bearing hinge system is welded to the door and frame which cannot be removed/replaced. Made with 22 gauge type 304 stainless steel front with #4 finish and an 18 gauge galvannealed steel back.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle" or without trim.

When ADA compliance is required, the door can be customized with an ADA compliant lever handle. There are no other accessory options for this door.

A direct replacement for: Valiant Products, Midland Chutes, Century Chutes and American Chutes and replaces easily with minimal wall damage. Can retrofit to other chutes with sheet metal adaptors and wall modifications to fit chute door openings the same nominal size. Replaces easily with minimal wall damage.

Complies with building codes, NFPA-82 and ASTM standards.
