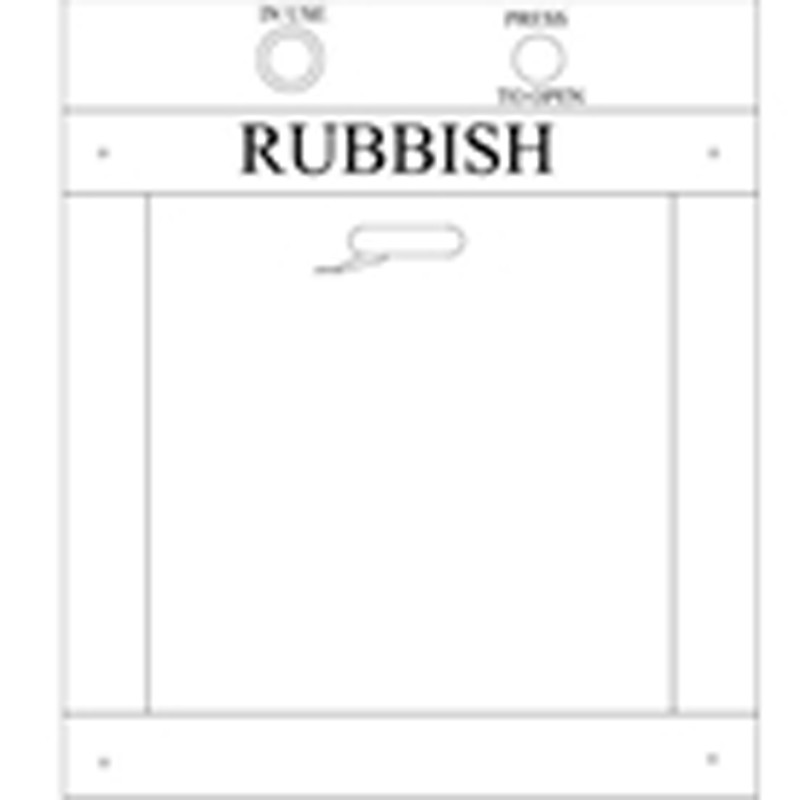

15"x18" Bottom Hinged Intake Door with 120vac Electrical Interlock, "W" Series

• Complete Premium Chute Intake Door Assembly.
• Nominal Size: 15" Width x 18" Height.
• Bottom Hinged.
• Hand Operated.
• Self Closing.
• 4" Pull Handle w/ Thumb Latch with Push Button Operation.
• The closing mechanism is slow and silent with a positive latching action contained away from the flow of material within a heavy-duty box, ensuring a longer life.
• The door opens a full 51° and the panel has a brushed stainless-steel finish for a longer life and easy maintenance.

• Replaceable door panels, latches, and closures ensure low maintenance costs.
• The mounting flanges have elongated holes, providing plenty of field adjustment and simplified installation.
• Replaceable door panels, latches, and closures ensure the lowest possible maintenance costs.
• 120vac Electrical Interlock.
• UL 1-1/2 hour 250° "B" label.
• "W" Wilkinson Style Signature Series.

Includes:

Operator: 4" Pull Handle w/ Thumb Latch & Push Button Operation.
Door panel/frame: Removable 1/2" shaft hinge with bronze bearings, removable door panel and stainless-steel trim. Door Panel made with 22-gauge type 304 stainless steel front and 18 gauge galvannealed steel back with 3/16" prime painted steel angle door frame. The door closer is mounted outside to the trash opening in a fully enclosed heavy-duty box to ensure years of trouble-free operation. Unlike other disposable doors, the Western Chutes, Compactors & Recycling Systems "W" Signature model can be completely disassembled while mounted on the wall, allowing every part to be cleaned, serviced, or replaced with ease.
Electrical Interlock System: 120vac electrical interlock with hands-free push-button operation and in-use indicator light. Interlocks allow only one door to open at a time to reduce clogging and enhance safety during peak usage periods. User must unlock the door by pressing the button then operating the latch or handle separately. Interlocks are normally locked so that in a power failure, doors cannot be opened. This also allows all doors to be locked out by turning off the power switch when working beneath the chute, reducing liability and injuries. Our 120vac Electrical interlocked chute intake doors are engineered for use on 120vac 60hz line voltage. Therefore, the intake door electrical panels and components are UL listed. Wiring is to be in a conduit in most applications. Check with your local building authority regarding installation requirements. basic or programmable control and power supply for operation.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

A direct replacement for Wilkinson Chutes Canada and Chute Source #W-5 with interlocks (specify five or seven wire system) and replaces easily with minimal wall repair. Can be retrofitted to others chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. However, interlock compatibility must be determined prior to ordering as a replacement.

Complies with building codes, NFPA-82 and ASTM standards.
