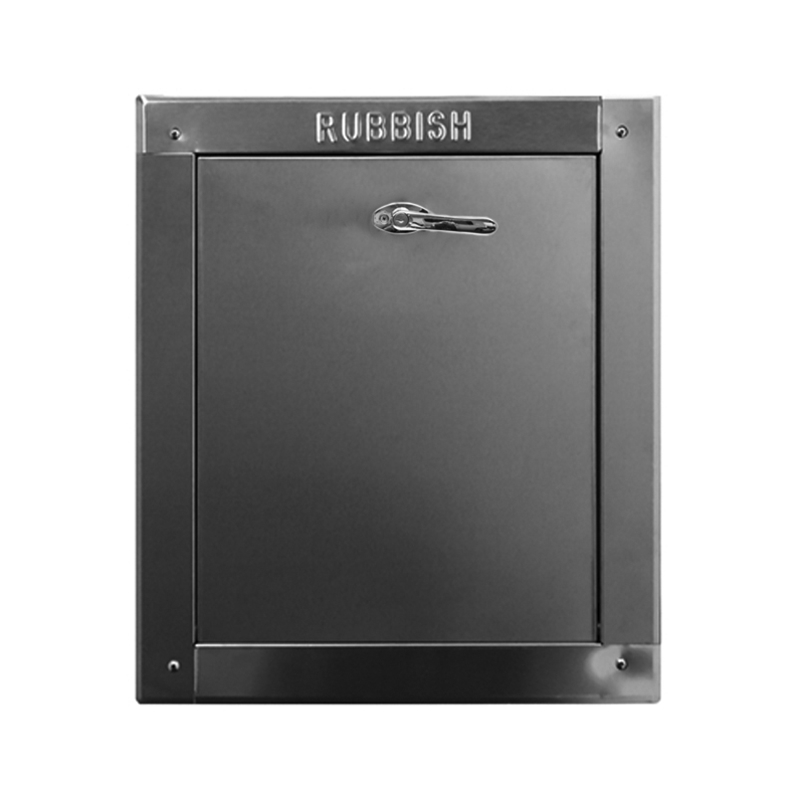

15"x18" Bottom Hinged Intake Door with ADA Handle & 15# Pull, "W" Series

• Complete Premium Chute Intake Door Assembly.
• Nominal Size: 15" Width x 18" Height.
• Bottom Hinged.
• Hand Operated.
• Self Closing.
• ADA Compliant Lever Handle w/ Integrated Latch.
• The closing mechanism is slow and silent with a positive latching action contained away from the flow of material within a heavy-duty box, ensuring a longer life.
• The door opens a full 51° and the panel has a brushed stainless-steel finish for a longer life and easy maintenance.

• Replaceable door handle, panel, latch, and closure ensure low maintenance costs.
• The mounting flanges have elongated holes, providing plenty of field adjustment and simplified installation.
• UL 1-1/2 hour 250° "B" label.
• "W" Wilkinson Style Signature Series.

Includes:

Operator: ADA Compliant Lever Handle. This door complies with ADA requirements of 5# effort to operate handle ONLY. It DOES NOT meet the 5# effort to open the door to be fully ADA compliant. To meet the requirement, the AHJ must have and exercise the exception, allowing an up to 15# pull effort.
Door panel/frame: Removable 1/2" shaft hinge with bronze bearings, removable door panel and stainless-steel trim. Door panel made with 2-gauge type 304 stainless steel front and 18 gauge galvannealed steel back with 3/16" prime painted steel angle door frame. The door closer is mounted outside to the trash opening in a fully enclosed heavy-duty box to ensure years of trouble-free operation. Unlike other disposable doors, the Western Chutes, Compactors & Recycling Systems "W" Signature model can be completely disassembled while mounted on the wall, allowing every part to be cleaned, serviced, or replaced with ease.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

Direct Replacement For:

A direct replacement for Wilkinson Chutes #801518, Wilkinson Hi-Rise, Wilkinson Chutes Canada, and Chute Source. Can be retrofitted to other chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. Replaces easily with minimal wall damage and can be retrofitted to other chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size.

Complies with building codes, NFPA-82 and ASTM standards.
