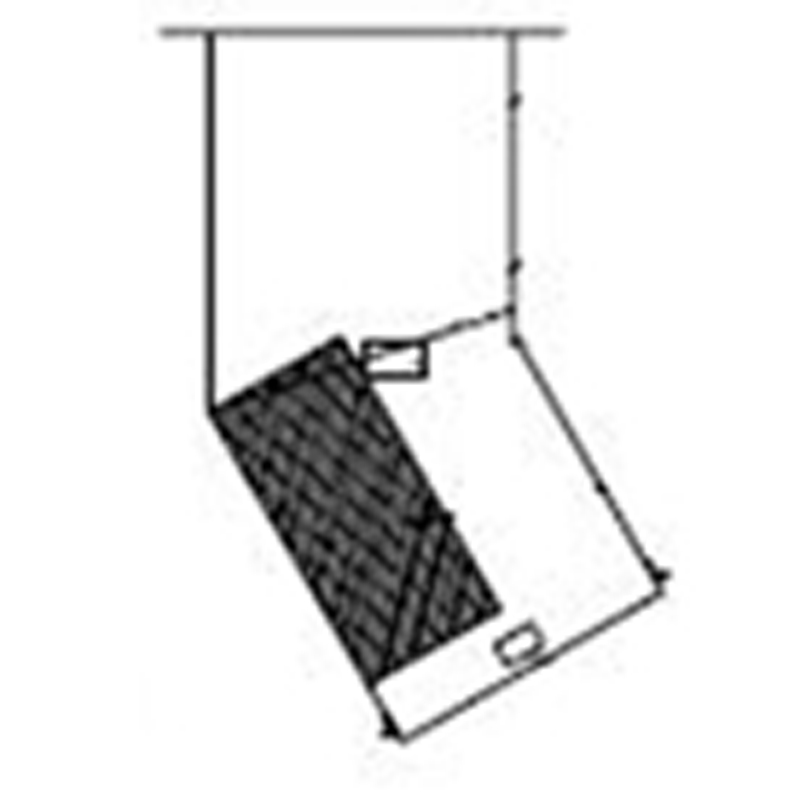

Detailed drawing for this item. Click here.

20"x20”x4” Medium Duty Chute Single Offset, "M" Series

20”x20” single (one bend) offset made of #16 gauge galvannealed steel with a #13 gauge impact plate. The single offset is 4’ long centerline to centerline with two support hanger clips on top and two at the bottom for connection to hanger supports available as an accessory. This offset is fabricated completely of #16 gauge steel. Offset has a 4" mounting flange on top for anchoring to the deck above. This offset DOES NOT have discharge mounting clips standard but are available at no additional charge, if specified. Made oversize at top to fit most generations of chutes such as Western Chutes, Wilkinson Chutes, Midland Chutes, Chutes International and others.

Offsets made per dimensions shown but may be ordered at longer lengths and configurations using our custom option. When ordering, specify 15 degree, 30 degree, 45 degree, or custom degree miter.

501020
Custom Built Product
MSRP: $866.25
Your Price: $822.94
Volume Discounts
Print Page

NEED INSTALLATION? Please Enter Zip Code to Check Availability.

Please Enter Zipto Check Availability.

Check Availability
