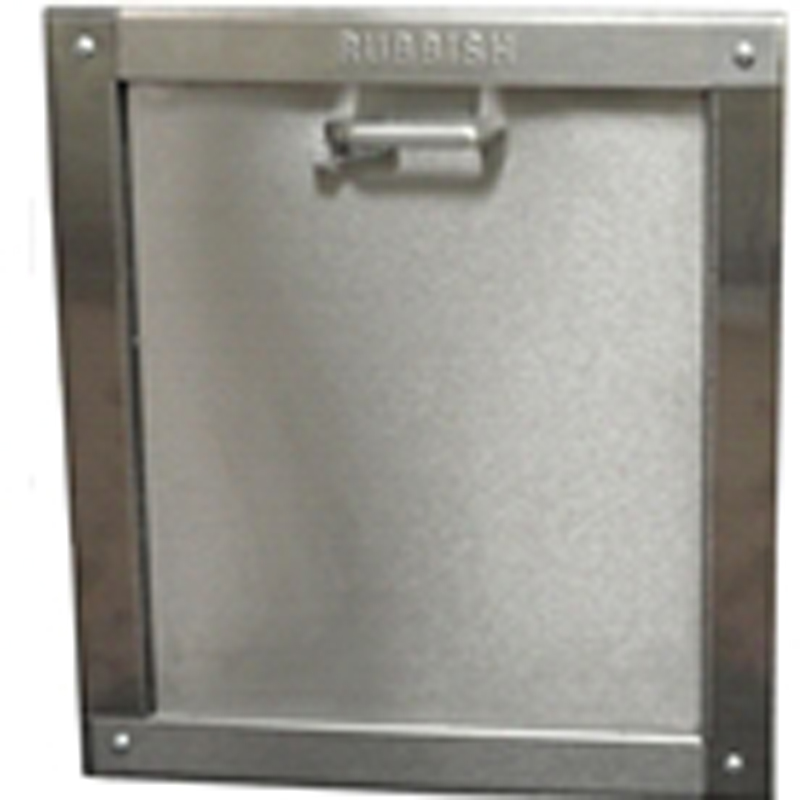

24"x24" Bottom Hinged Intake Door Assembly, "W" Series

• Complete Premium Chute Intake Door Assembly.
• Nominal Size: 24" Width x 24" Height.
• Bottom Hinged.
• Hand Operated.
• Self Closing.
• 4" Pull Handle w/ Thumb Latch.
• The closing mechanism is slow and silent with a positive latching action contained away from the flow of material within a heavy-duty box, ensuring a longer life.
• The door opens a full 51° and the panel has a brushed stainless-steel finish for a longer life and easy maintenance.
• Replaceable door panels, latches, and closures ensure low maintenance costs.
• The mounting flanges have elongated holes, providing plenty of field adjustment and simplified installation.
• Replaceable door panels, latches, and closures ensure the lowest possible maintenance costs.
• UL 1-1/2 hour 250° "B" label.
• "W" Wilkinson Style Signature Series.

Includes:

Operator: 4" Pull Handle w/ Thumb Latch. When ADA compliance is required, these doors can be customized with ADA compliant lever handles.
Door panel/frame: Removable 1/2" shaft hinge with bronze bearings, removable door panel and stainless-steel trim. Door Panel made with 2-gauge type 304 stainless steel front and 18 gauge galvannealed steel back with 3/16" prime painted steel angle door frame. The door closer is mounted outside to the trash opening in a fully enclosed heavy-duty box to ensure years of trouble-free operation. Unlike other disposable doors, the Western Chutes, Compactors & Recycling Systems "W" Signature model can be completely disassembled while mounted on the wall, allowing every part to be cleaned, serviced, or replaced with ease.
Trim: Stainless Steel, available blank or embossed with "Rubbish", "Soiled Linen", or "Recycle".

Direct Replacement For:

• Wilkinson Chutes #802424,
• Wilkinson Hi-Rise.
• Wilkinson Chutes Canada.
• Chute Source.

Can be retrofitted to other chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size. Replaces easily with minimal wall damage and can be retrofitted to other chutes with sheet metal adaptors and wall modifications to fit chute door openings for doors of the same size.

Complies with building codes, NFPA-82 and ASTM standards.

WARNING: CAUTION REQUIRED WHEN USING 24" x 24" CHUTE INTAKE DOORS

Purchasing and installing 24" x 24" chute intake doors requires careful consideration due to the larger size. This dimension can present a safety hazard, as it is large enough for a human to fit into, increasing the risk of injury or entrapment.

Key Safety Considerations:

1. Restricted Access: Only authorized personnel should have access to areas where these chute doors are installed.
2. Proper Supervision: Ensure oversight when the chute doors are in use to prevent accidents.
3. Signage: Install visible warning signs near the chute doors to alert users to the potential danger.
4. Safety Interlocks: Use on a chute system with safety interlocks to prevent operation when the intake door is open.
5. Alternative Sizes: Make every accommodation to use a smaller intake door size to mitigate this risk.

Disclaimer:
It is the responsibility of the purchaser and installer to ensure that all safety measures are in place, and the chute is used in compliance with local safety codes and regulations. Failure to address these concerns may cause serious injury or harm.

Proceed with caution.
