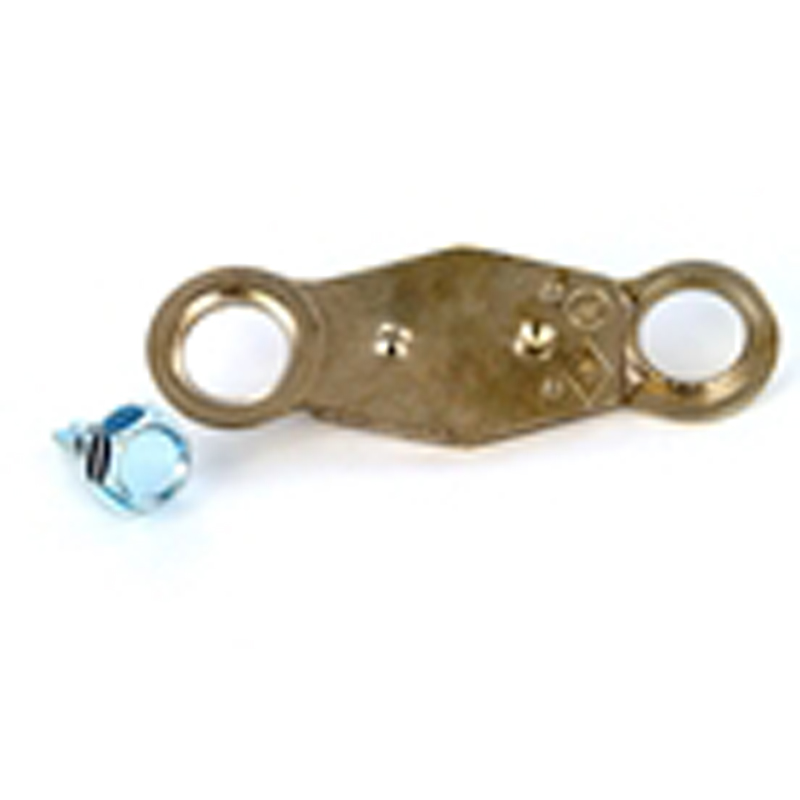

Fusible Link for Rolling Discharge Door, Type "A"

Fusible link with plated sheet metal screw for mounting to the bottom of a horizontal, rolling style discharge door panel to keep the door open. This fusible link is designed to melt when the ambient temperature in the collection room reaches 165 degrees. The fusible link is UL Listed and manufactured from bronze components to aid in resistance to corrosion. It measures 1.625" from mounting hole centers where the holes are 3/8" diameter. This link is to be used on doors mounted horizontally only with a load of less than 20 lbs. If the door is mounted on an offset / on an angle use our heavy duty link. We also offer the pendant wire with speed nut required to hold the door open. Please see spec's to verify the product before ordering.

This fusible link is compatible with most horizontal, rolling discharge doors, our "M" Series doors in sizes 18", 20", 24", 28", 30" and 36" and our "R Series in sizes 20", 24", 28", 30" and 36". It is often used in Western Chutes, Chute Source, and Architectural Refuse Solutions Type "A" discharge doors. A UL Listed fusible link is an important part of the discharge door working properly. Discharge doors are to always remain open, only closing when the fusible link is melted. To ensure the entire chute is safe and functioning properly, visit the Chute Doctor's service section to find out more about our cleaning, maintenance, and odor services.
